Procedures

File Access Scanning Document Cleaning Blank Pages

Document Procedures

File Access for MBMG and General Public



Out Guide Form

Kyocera Scanning Instructions


Basic Document Cleaning

  1. Take an “out guide” and a pen to the shelves and find a file which has either no status markings or only a black mark. Do not pull the file completely out. Pull the file out only far enough to complete the information needed to fill in the “out guide.” Slide the “out guide” in beside the file, then pull out the file.
  2. In the \\mbmgs1a\mining archives$\Working Folder\Current Work check if the folder has already been scanned. If it has been scanned, its name should contain the name of the student assigned to it.
  3. Before scanning a folder, go through each of the contents to prepare the documents for scanning and to know what to watch for while scanning. See guidelines below:
    4. Paper-clipped together Remove all paperclips; after scanning, re-clip the document set with an archival, stainless-steel paperclip.
    Stapled together Remove all staples using the metal micro-spatula (located in the supply drawer behind the work counter). With the spatula, carefully bend the ends of the staple up to a vertical position, then slide the spatula under the staple and gently pull it out of the document. After scanning, paper clip the document set together with an archival stainless-steel paper clip.
    Glued Gently try to pull glued pages apart; please see a Staff Member for assistance or direction if the pages do not easily separate.
    Bound Remove the document binding if possible; please see a Staff Member for assistance or direction if the pages do not easily separate.
    Printed on both sides of the paper If the document can go through the document feeder, and it is two sided, you will need to change the settings to scan both sides. If it cannot go through the document feeder, you do not need to change the settings. Please be sure to scan both sides manually.
    Folded in half, third, or with other documents inside Open and separate each folded document to select proper scanner page size setting. Change the page size setting from the default (letter) to the appropriate page size; An incorrect setting will result in data loss on your scan.You can also scan all pages at the ledger setting, but you will need to correctly crop pages as needed to reflect the correct size. For odd-sized scans, use a larger setting to ensure that the scan contains all document data.
    Multiple sized pages in a document Open and separate each folded document to select proper scanner page size setting. Change the page size setting from the default (letter) to the appropriate page size; An incorrect setting will result in data loss on your scan.You can also scan all pages at the ledger setting, but you will need to correctly crop pages as needed to reflect the correct size. For odd-sized scans, use a larger setting to ensure that the scan contains all document data.
    Onion skin paper The tissue-like paper will tear in the document feeder. They need to be placed flat on the scanning glass.
    Faint Printing Adjust density setting adjustment and retain the same setting for multiple page documents.
    Print visible from opposite side Use Prevent Bleed Through for each page of affected documents.
  4. Scan all pages of each document or group of documents. Press "Finish Scan" on the Kyocera scanner to save each group as individual pdf/a scans. The pdf/a scans will be sent to the "Scans" folder.
  5. After scanning: Open the new scan in the "Scans" folder to ensure that all pages were captured correctly. If there are any errors, please rescan the pages. When a scan is complete, create a folder with a simple name indicating the name of the physical folder in "Working Folder>Current Work".
    • If you are scanning a folder labeled "Iron Mask" and it is from Broadwater County, for example, please label the folder as Broadwater_Iron_Mask.
    • If you are scanning documents from a special collection, please ask a full-time staff member for directions for the names of the scans and folder.
  6. Copy the pdf/a scan into the newly created folder. Delete the scan from the "Scans" folder after ensuring the copy was successful.
  7. In the "Originals" folder, each document should be in a PDF/A and JPG file. Use photoshoshop to convert JPGs to PDF/As and PDF/As to JPGs. TIFFs will remain as TIFFs in the Originals folder.

  8. Copy the JPGs from the Originals folder and paste them into the Jpgs folder. The JPGs should not be edited in the Originals folder. Once edits for the JPGs are finished, convert all JPGs to JPFs.

  9. Optimizing Scans: The goal is to ensure the documents are straight and legible. Reference the physical folder as needed when you are optimizing the digital files. When you are not working on that folder, please keep it in your mailbox at the workstations.
    Clean, straighten, resize pages according to procedures and any other guidance you receive. If you have questions, please ask.
    • Straightening: Documents should be straightened as much as possible. For documents that contain several other document images on them (Mine Status Card, for example), each " sub-image" should be straightened so that all of them are straightened on the page.
    • Rebuilding Text: As needed, use the clone tool or copy via layer as much as feasible to repair missing or illegible text. Try to use a brush size and fuzziness setting that matches the original text as much as possible. If the document is a publication from other agencies, like the USGS, it might be more efficient to download the digitized version from their website.
      If the sides of documents were "cut off" in the original that we have in our file, attempt to recreate the missing text using the clone tool. Ask a full-time staff member for assistance in determining the wording of the missing text.
    • Backgrounds: Backgrounds seldom need to be replaced, but if you think it would be useful to do so, please consult with a full-time staff member.
      You can use an existing background from the Backgrounds folder in the Working folder, or you can create a background layer using the clone tool or other appropriate technique.
      Most backgrounds have a texture in them, so using one solid color as a background (unless the original background was pure white) is not an optimal solution.
    • Consistency: If you use image settings on the first page of a multiple page document (e.g. Image, Adjustments, Levels or Exposure, Brightness, Contrast, etc.), write those settings down and apply them to each successive page to maintain a consistent look throughout the entire document.
    • Layers: Remember to flatten your layers before saving your work

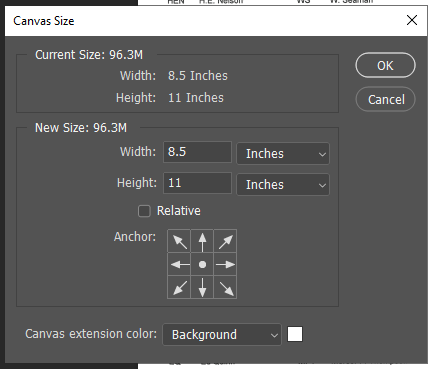

    • Page Size: If the original document is smaller than the standard letter size, crop the image to its original size. When you have completed optimizing the image, go to Canvas Size and change the size to 8.5 x 11. Whenever possible, please use the portrait orientation. (8.5 x 11 instead of 11 x 8.5). The anchor setting should be set to the center square (see below).
      Adjusting the page size should be one of the last tasks you perform. Make sure that you check the canvas page size and adjust as necessary. If the pages you are working on are an unusual size, see a full-time staff member for direction.
    • Finally, save the document in the JPF format. All the default settings for saving as a JPF will work, EXCEPT make sure that the 'Lossless' box is checked.

  10. Quality Assurance Review: Place a post-it note with your name on the physical file to identify whose work we are reviewing, and give physical file to the appropriate person. Full time staff will review the digital file and reference the physical file as needed.
    If the file is returned to you with notes for improvements, when you return the file, please keep all notes with the file.
  11. Each day, record your hours and work in your Timekeeping and Work Log.


For additional help with cleaning the documents in photoshop, please access the link below:

Cleaning Documents in Photoshop

What to Do With Blank Pages

    There are frequently blank pages in various places in documents. Depending on the context of the page, you will want to take different actions.
  • If the page is the back side of another page and is unnumbered then it will usually be deleted from both the Jpgs and Originals files (and will require renumbering the Originals). These serve no real purpose and have no information on them. Extra pages inserted after the title page also may be eliminated.
  • Some reports have sections divided by pages with tabs, different colored paper or even plain white paper. If the inserted page is separating a chapter or report section and the “division” in the report is not readily recognizable, then retain the page. If the section and/or chapters are easily distinguished from the preceding chapter or section, the extra inserted page(s) may be deleted.
